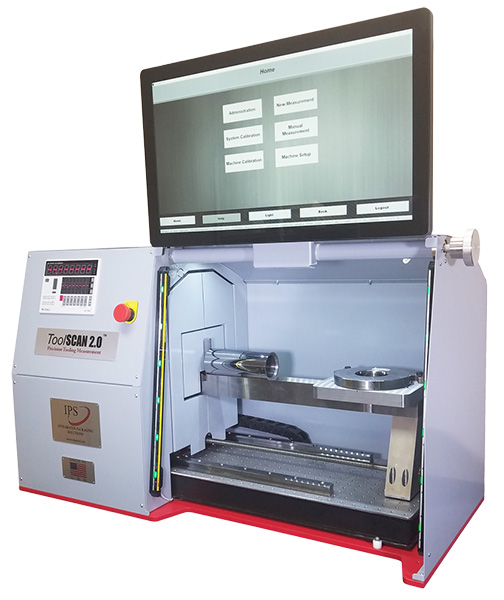

Tool Measurement Gauge
ToolSCAN 2.0™ delivers fast, reliable, non-contact measurements for Bodymaker punches, dies, and Necker tooling, helping tool rooms improve consistency and extend tooling life. Known for its accuracy and repeatability, ToolSCAN 2.0™ remains one of the best-value gauges in the can making industry. The system also works seamlessly with ToolCONTROL™ software to simplify tooling tracking and give can plants better visibility over their Bodymaker tooling inventory.
Can Plant Applications:
- Punch OD, Step Scan, Rework Taper & Roundness – Measures critical punch dimensions for accurate rework and wear tracking
- Ironing & Redraw Die ID & Roundness – Verifies die condition to maintain consistent can quality

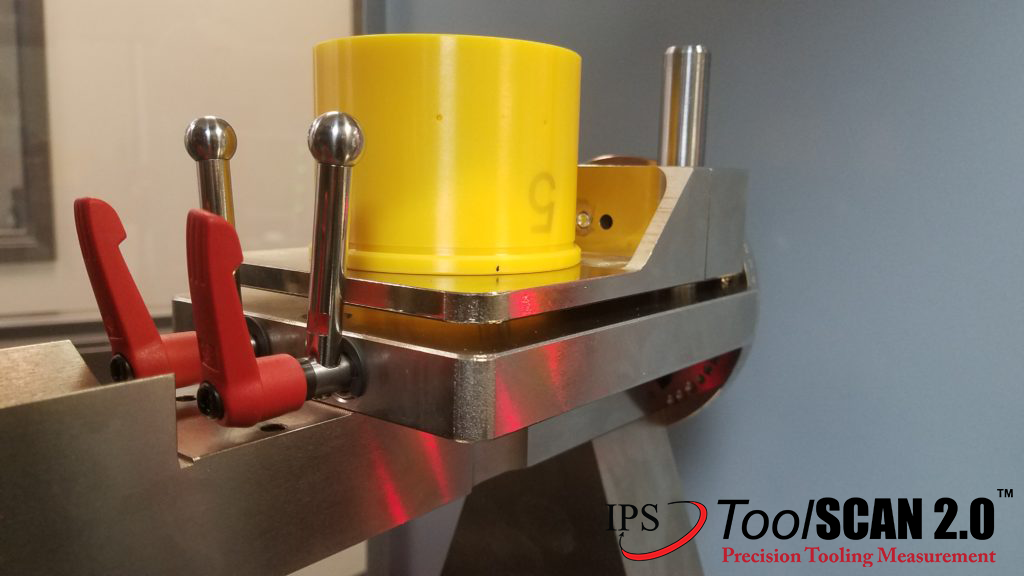

- Necker Die ID & Knockout OD – Checks necker tooling for proper fit and performance
- Custom Measurement Profiles – Supports plant-specific routines for consistent workflows
- Report Generation & ToolCONTROL™ Integration – Produces measurement data and connects with centralized tool management
ToolSCAN 2.0 Specifications:
- Repeatability: 0.38 microns / 0.000015 in (industry best)
- Fast Measurements: 15 seconds for Punch OD & Die ID
- Non-Contact, Green LED Technology – Prevents tool wear and measurement distortion
- Thermal Monitoring – Maintains accuracy under changing conditions
